s14 clutch

[kizzyturbo4x4]

have mounted an RPS s14 Clutchkit to my R.

came with uprated pressureplate and a full face sprung disc.

but now the clutch wont release fully?
any other have s14 clutches?
ideas?



[MarkTurbo]

How much 'free play' is there at the top of the pedal



[Fast Guy]

Which clutch cos I have one sat here that better release properly when it goes on :evil:



[daz]

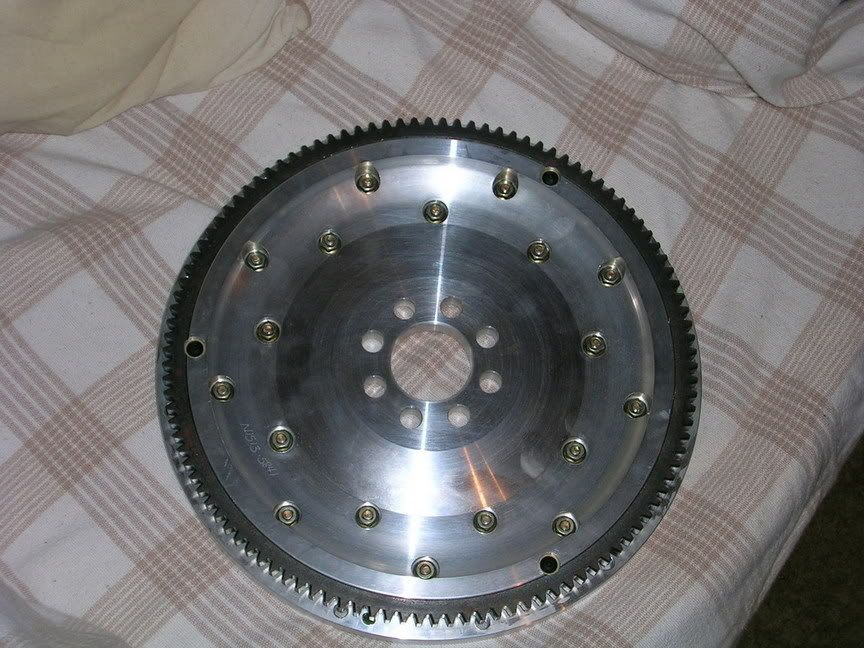

i have an rps organic clutch rated at 474llb/ft with the fidanza flywheel and all works fine very happy with it and i believe that they are both for the s13 so i have no problems.



[kizzyturbo4x4]

How much 'free play' is there at the top of the pedal

feels like it takes right on, but resistance gets hardest from about halfway and down.

Its an RPS Clutch for Silvia s14 sr20det.
had no problem fitting it, when compared to the stock it seemed to be
just the same just MUCH stiffer pressure plate ofcourse.
using standard fork and piviot and release bearing.

this is the clutch, the top one:

http://www.turboclutch.com/max_nissa.html

the part no: MS-17538-ST



[kizzyturbo4x4]

i have an rps organic clutch rated at 474llb/ft with the fidanza flywheel and all works fine very happy with it and i believe that they are both for the s13 so i have no problems.

Then do you have the same clutch as me? (see link above)

i modded the slavesylinder so that it wanders further than normal
and now it kinda works, but its not all ok pro done if you get me... :?

have a 200sx s14 gearbox and a gtir box in my gargae, and i comparred the realease bearings, the s14 one where a bit thicker.. might meen it pushes further against the pressure plate, but dont know that for sure.

my poor R...
