Power graphs only!! read before posting

GINGA

Active Member
This topic is for power graphs and mods done inc boost levels to get that result only!! that means no my car made this at this rpm as thats only peak firgures and the idea of this is to be able to compare what mods have what effect on bhp/torque over the entire rev range :wink:
Also don't reply to posts if you need to ask questions do so by pm please as loads of questions will just clutter it up :( further more any replies WILL be deleted :wink:
I'm hoping to get this in its own section for better viewing but it all depends really on how this turns out :wink:

any more peeps who would like to post up thier results, if you have different cam fitted, bigger or smaller turbos,any more 2.2 peeps...zia



Fast Guy

Moderators
Staff member

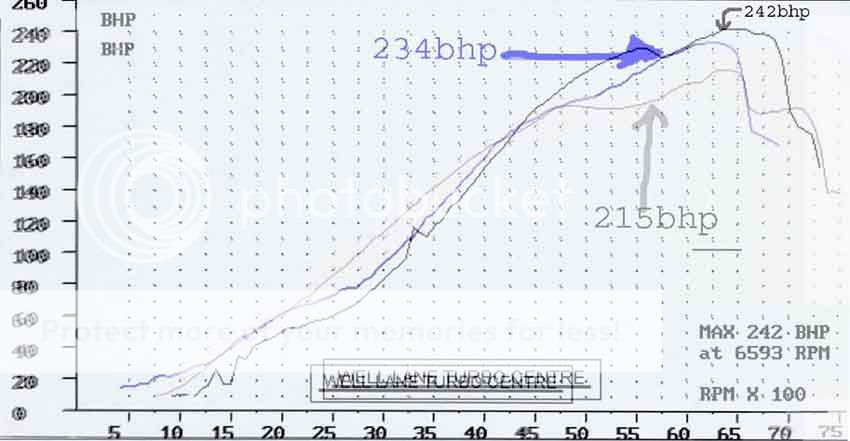

215 bhp totally standard.
234 bhp apexi induction kit and mongoose fitted.
242 bhp Dawes put on, but not set to anything yet.

All 3 runs on very hot days.

M

memski

Guest


At interpro rr day:

1bar boost, AVCR, SAFC, WI, Apexi filter, hks fpipe, decat, 5zigen cat back exhaust, HKS SSQV, Greddy catch tank.

Standard turbo/injectors/tmic.


pete-r

New Member
just got the car back from engine advantages ;

322.3bhp@flywheel
305.5lbft torque@flywheel
at 1.2bar

with following mods:
FMIC
hks head gasket (1.2mm)
ap racing clutch
spec r boost controller
hks filter
bailey DV
stage 2 turbo



im pretty happy with that :D :wink:

A

AVOGTIR

Guest

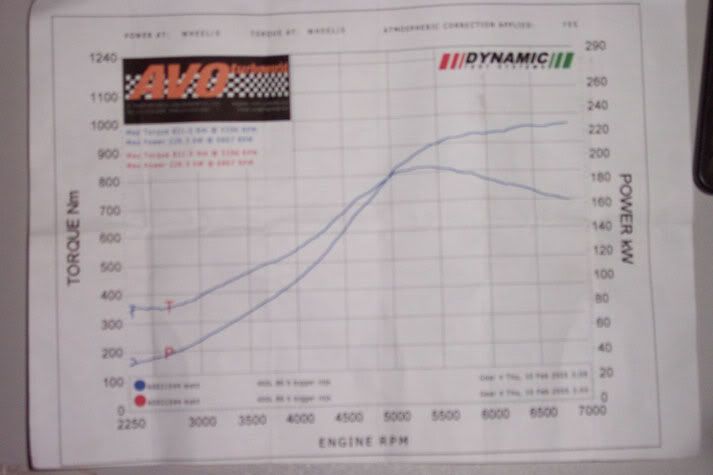

Max torque 821Nm @ 5296
Max Power 226.3 kW @ 6867

Mods

Custom FMIC
walbro fuel pump
sard 700cc injectors
Cams:
Cam Lift Duration Duration Valve Valve Cam Lift Phase
Adv @050 Clr Lift tdc <)
--------------------------------------------------------------------------
Intake 274 276 218 0.006 0.4096 n/a 108
Exhaust 274 270 218 0.008 0.4076 n/a

arias 86.5mm pistons
crap 6 puck ceramic clutch
balanced bottom end
Mallory hyfire ignition and coil
$3 spark plugs
link plugin ems
2 3/4 nismo exhaust
1.2bar boost

i am quite happy, there is heap left in the motor and turbo but the link can only handle 1.55bar. I need to source a ebc to hold 1.3 bar which should see me past the 240 mark.

matt
[/img]


Fire & skill

Vintage member

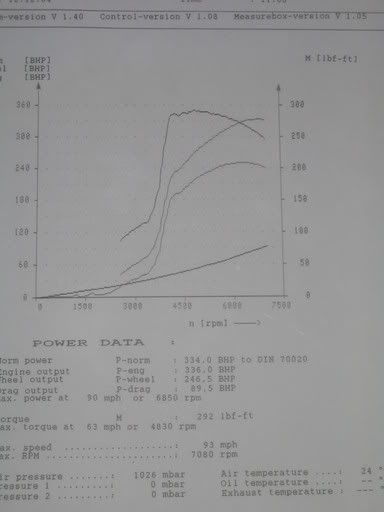

at scottish RR day held at star performance - 12/12/04


336bhp
292lb ft torque.

using RB box (dakar)

mods: hks evc3 (set to 1.2 bar for run)
timing set for jap fuel - octane booster added +2 ron. 100 ron
k&n ind kit
standard t28 turbo
standard injectors
standard internals
remap by buddyclub Japan (well it says this on the ECU!)
helix clutch
and thats about it, still had the cat fitted.

the car is as it came from japan, only the helix clutch has been fitted by myself since


turblio

New Member
Franks R

Here is a rough spec...
Block and Head Decked
Low compression forged and coated pistons by JE
Pistons matched and balanced
Head mildly ported
Triple cut valve seats
HKS cams
HKS head gasket
Crank lightened and balanced
nismo lightened and balanced flywheel (4.1kg)
Helix clutch
nismo engine mounts
GT28RS turbo (3") with .86ar
3" alloy hardpipe induction
Unichip
Grp n fuel pump
profec b controller
and a very good remap by engine advantages ;-)

Last edited by a moderator:

Dooie Pop Pop

New Member
PTS 05 :D dips are due to wheelspin :twisted:

3inch turbo back exhaust
gt3071r
87mm hks forged pistons
knife edge crank
lightened fly wheel
1.2 metal head gasket
lightened and balenced bottom end
ARP rod bolts
HKS 264 cams
700cc injectors
z32 maf
emanage
rps maxstreet organic clutch

bhp graph showing 395.3bhp @ 1.4bar and 6808rpm :D


372.5lb ft of torque at 4600rpm 8)


:D :D :D


bengilmore

New Member

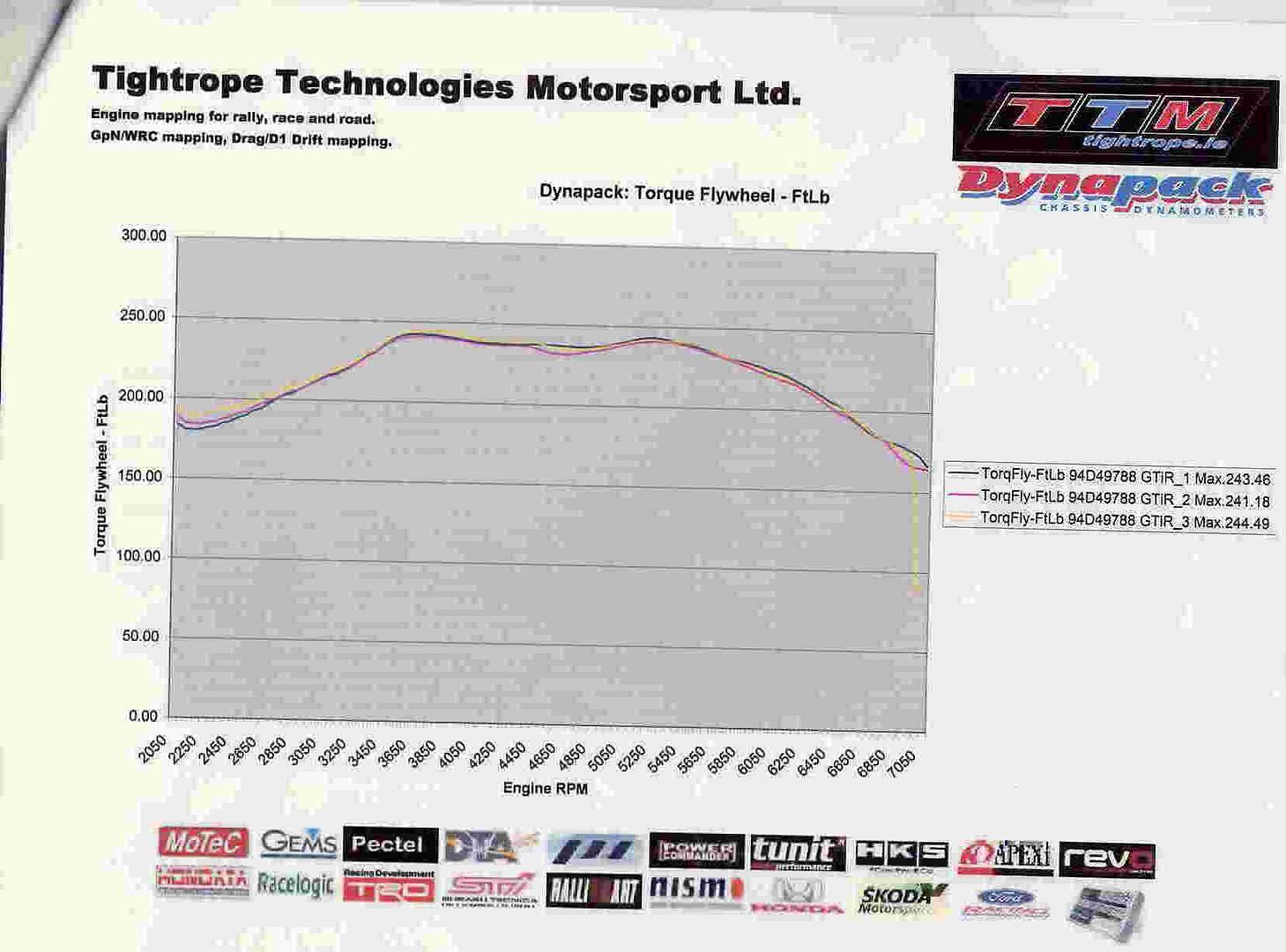

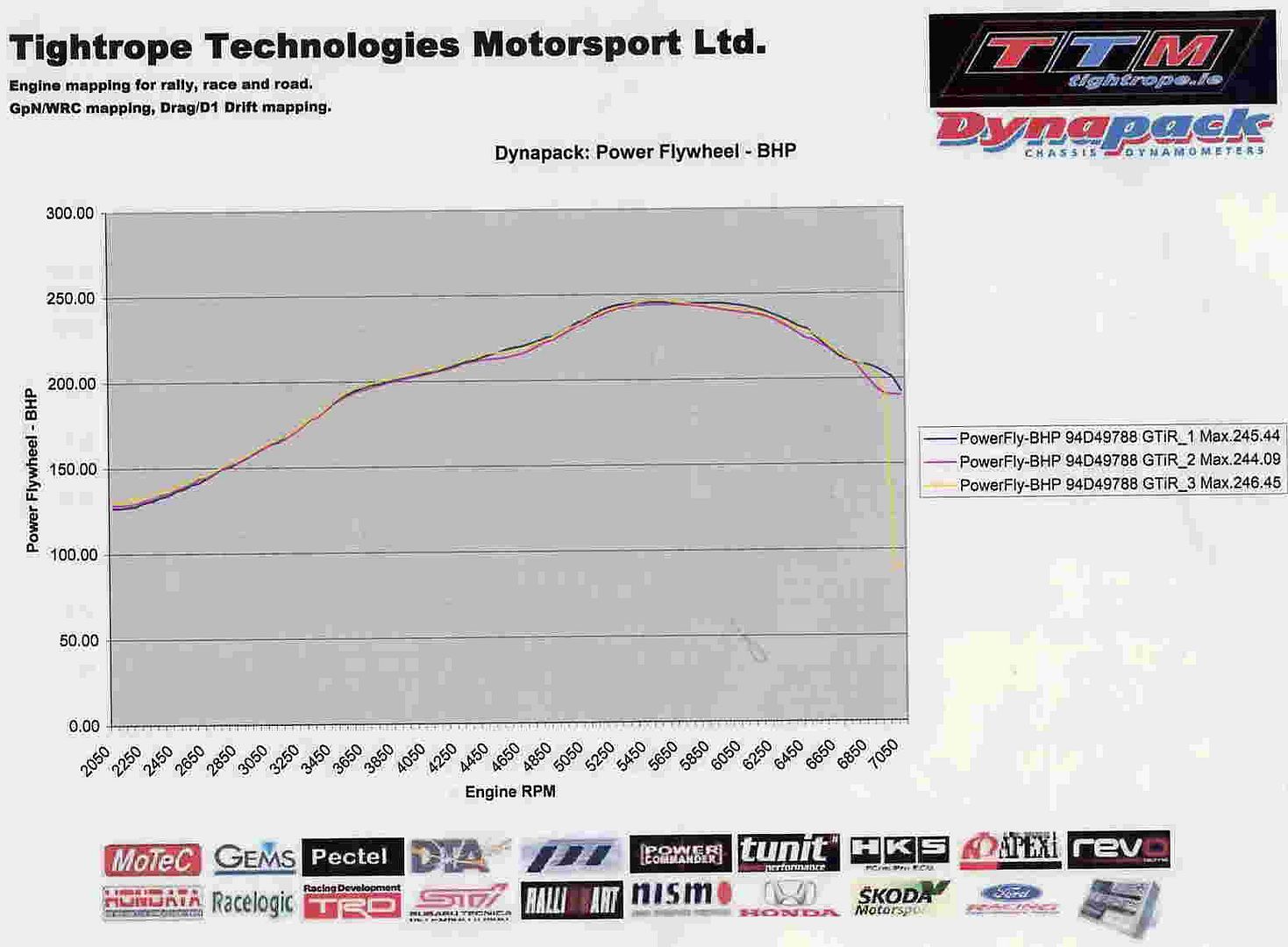

246bhp @ flywheel



244 lbft torque

Only have an Apexi filter and a Kakimoto exhaust
Was also only running 0.56bar
Seems a bit high?


pesh90

Member

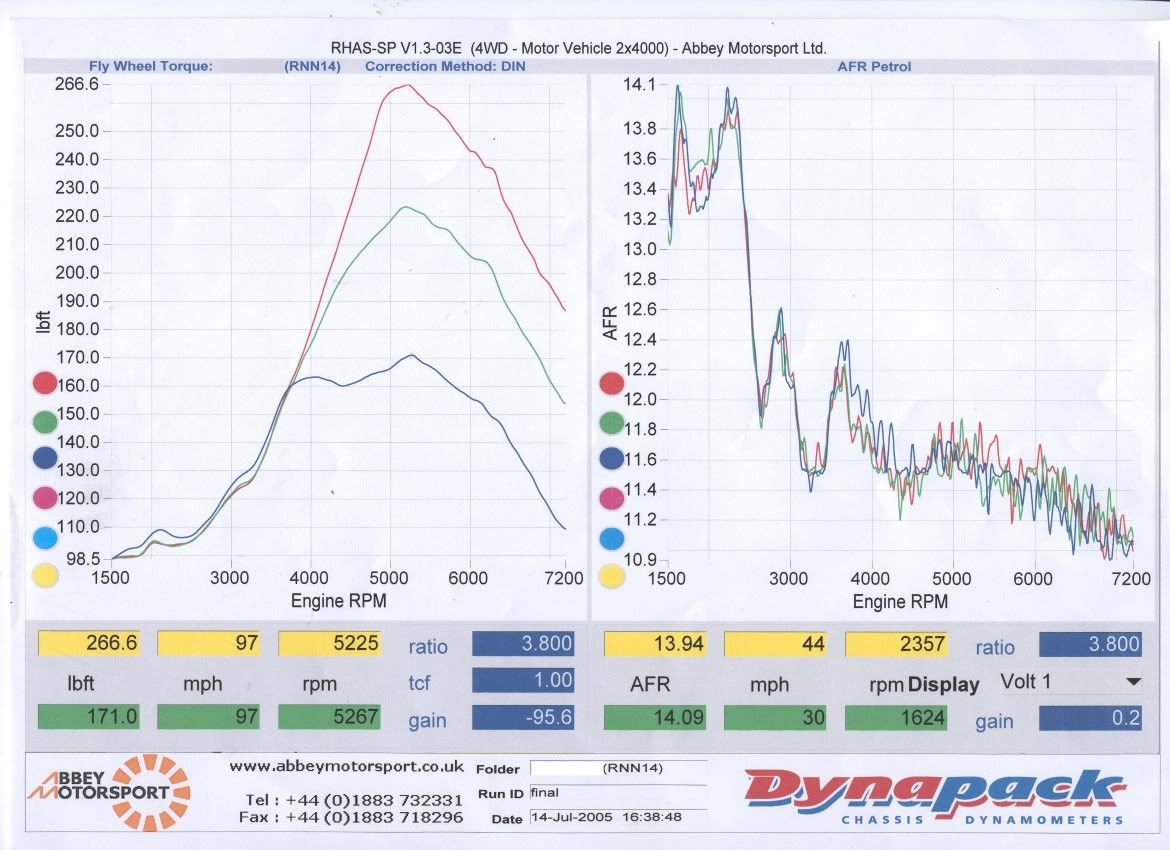

POWER SHOWN IS @ THE HUBS

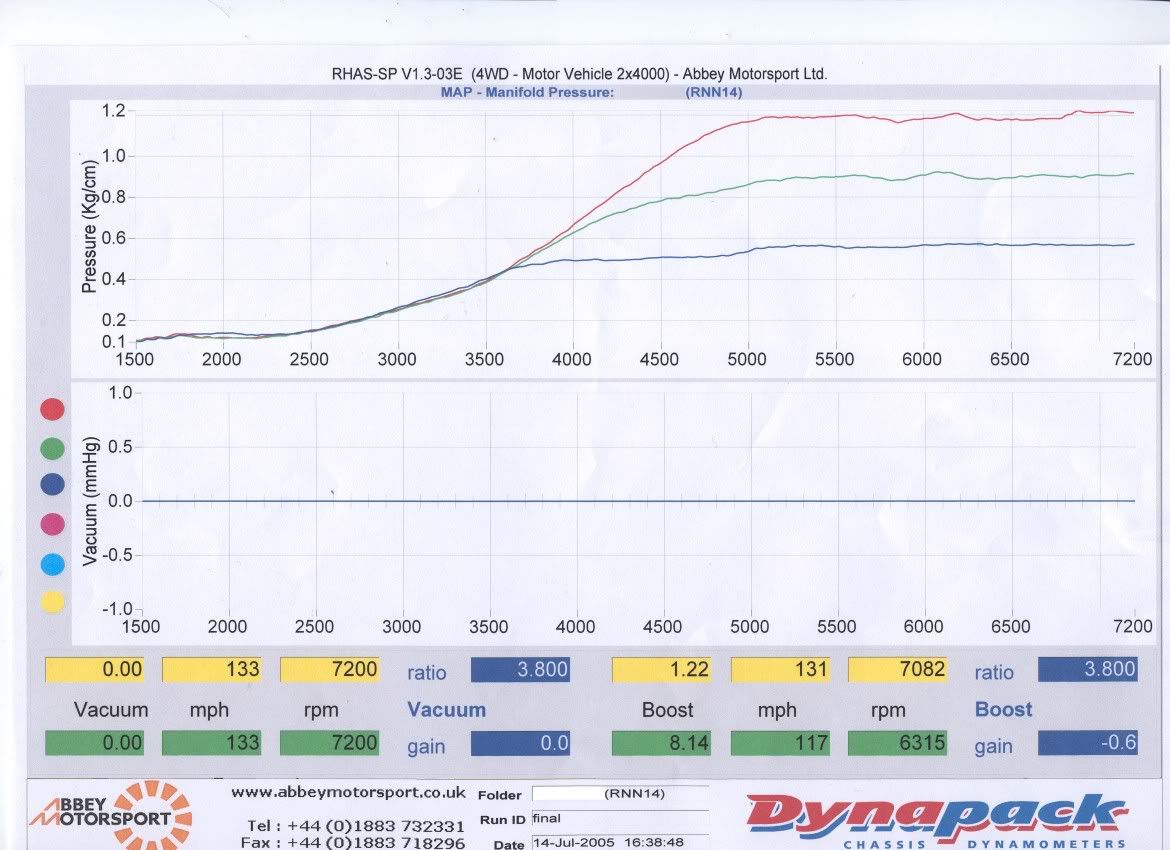

RED LINE IS @ 1.2 BAR
GREEN LINE IS @ 0.90 BAR
BLUE LINE IS @ 0.50 BAR

Told by abbeymotorsport that the R is running just short of 400bhp








2.2 tomei stroker kit
264 hks cams
T28 hybrid roller bearing turbo
Quaife box
FMIC (FORGE)
600cc tomei injectors
Z32 maf
Apexi induction kit
Mongoose exhaust full system with de-cat pipe
Power fc
Hks fuel regulator
Uprated fuel pump (not sure what make :oops: )


Mr GTiR

New Member

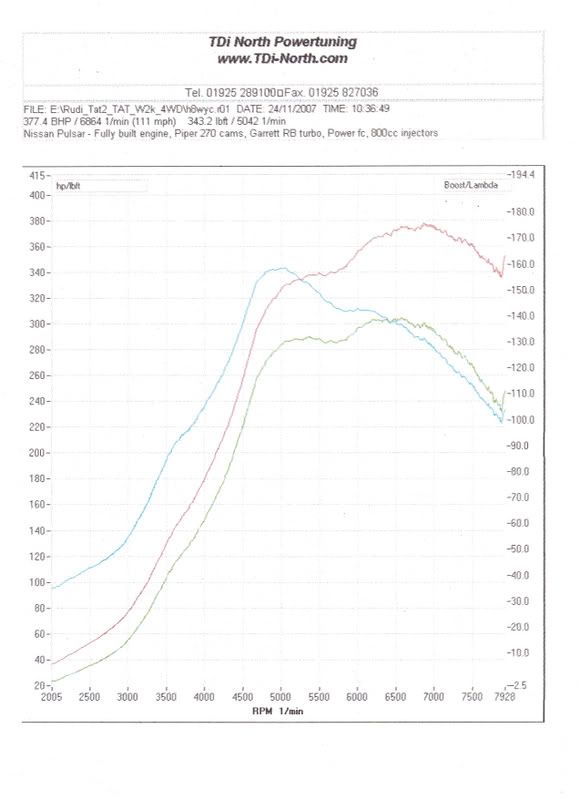

Here's mine, it made 377.4 bhp and 343.2 lb/ft torque at 1.4 boost (low). Will get it on the rollers again once it's mapped for 1.8 bar.


Last edited:

PaulB

Member
Heres mine.........

Arias Pistons, Eagle Rods, std head n cams. Gt3071R, 550cc injectors, Q45MAF, Scorpion, HKS Filter, Iridium Plugs, FMIC, Oil Cooler, running 1.35bar boost, remapped Nissan ECU with dawes device.
